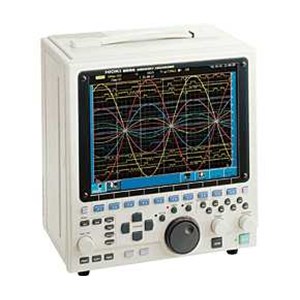

HIOKI MEMORY HiCORDER 8855

8ch high-speed isolated inputs of 20MS/s, Max. 512 M words long storage memory : - Maximum 8 analog channels and 16 logic channels - 20MS/s, 8ch 12-bit high-speed isolated Input (8950/ 8951/ 8952) - 1MS/s, 8ch 16-bit HIGH RESOLUTION Input (8953-10) - Max. 512 M words long storage memory - Zoom and scroll functions providing enlarged and compressed displays - Standard LAN/SCSI interface Measurement ranges using 8950 ANALOG UNIT /option : 5 mV to 20 V/division, 12 ranges (20 division f.s.), resolution: 1/400 of range AC voltage for possible measurement/ display using the memory function : 280 V rms Frequency band : DC to 10 MHz ±3 dB (used 8950 ANALOG UNIT /option) Time axis at memory function : 5 µs to 5 minutes/division, 24 settings; external sampling (100 samples/division, desired setting) Measurement functions : (1)Memory, (2)Recorder, (3) Recorder & Memory(Version 2.00 or later), (4)FFT(Version 2.00 or later), (5)Power Monitor(Function to be added, Additional function provided by the 9549 FUNCTION UP DISK (POWER MONITOR)) Number of input channels : Analog (up to 8 channels) + logic (16 channels standard) Memory capacity : 4 M words/channel(Total 32 MW) Max.64 M words/channel(Total 512 MW, Option) Data storage : Floppy disk drive, Type II PC card slot (9727/ 9728/ 9729 PC card, 256MB to 1GB), MO drive (optional), Hard disk drive (optional) Interfaces : LAN, SCSI Interfaces (optional, sold separately) : GP-IB: GP-IB CARD 9558 used, RS-232C: RS-232C CARD 9557 used This function is to be supported from version 2.00 of this unit. Recording and display : 10.4-inch TFT color LCD, 216 mm (8.5 in) × 30 m (98.4 ft), thermal paper roll Other functions : Waveform judgment function*, Scaling, Vernier function*, pulse count function, waveform search function, cursor measurement, comment insertion, other functions *This function is to be supported from version 2.00 of this unit. Power supply : 100 to 240 V AC (50/60 Hz) Dimensions, mass : 275 mm(10.83 in)W × 280 mm(11.02 in)H × 170 mm(6.69 in)D, 6.3 kg (222.2 oz) (base unit only) Accessories : Power cord (1), PC card protector (1), input cord label (1), wave viewer software (1)
